DE2A-L
Laser Theodolite


• Good Visibility of the Laser Line
• Absolut Coding Angle Measurement
• Large LCD Display
• Single-axis Tilt Sensor
• More Convenience when the insteument is combined with the diagonal eyepiece

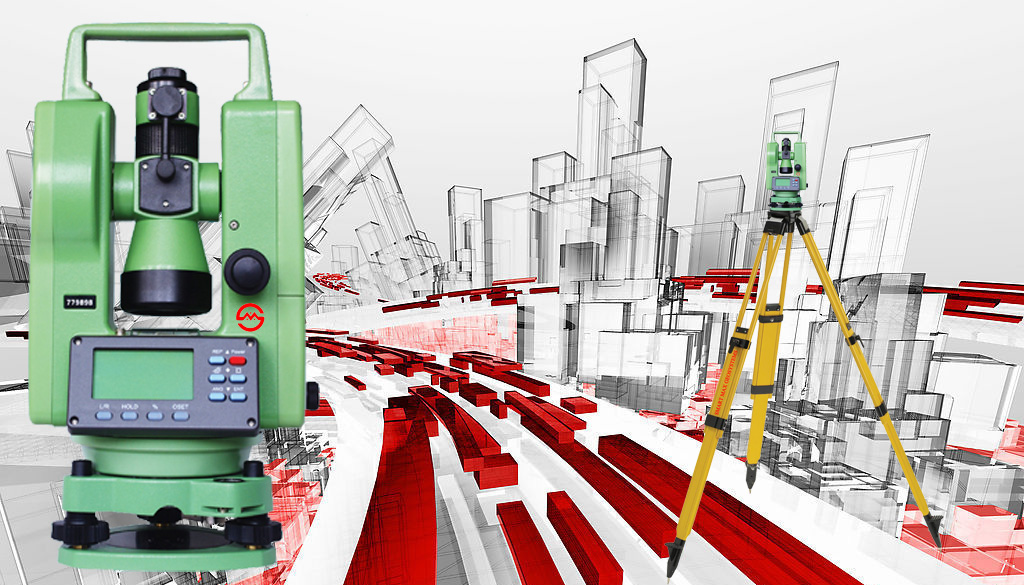

The DE2A-L laser theodolite with built-in diode, the laser can be seen up to 200m away outside in daylight. The clear laser spot can also be seen up to 100m through eyepiece. It is convenient to focus and adjust the laser brightness. The laser device is integrated with telescope, resistant to dust, rain and other harsh elements. All standard functions of electronic theodolite are available in it.
Technical Features
Telescope
Magnification 30X
Image Erect
Shortest sighting dictance 1.5m
Field of view 1° 30'
Angle measurement
Accuracy 2'',5''
Minimum reading 1'',5'',10''
Compensator
Type Single-axis liquid tilt sensor
Range ±3'
Electronic Reference
Battery type Rechargeable/5 x AA alkaline batteries
Battery volume 1800mAh,6V (Ni-MH battery)
Battery life 15 hours
Others
Plummet Optical / Laser
Weight 5 kg
Working temperature -20℃~+45℃
