HY1600 Precision Survey Echosounder

Overview

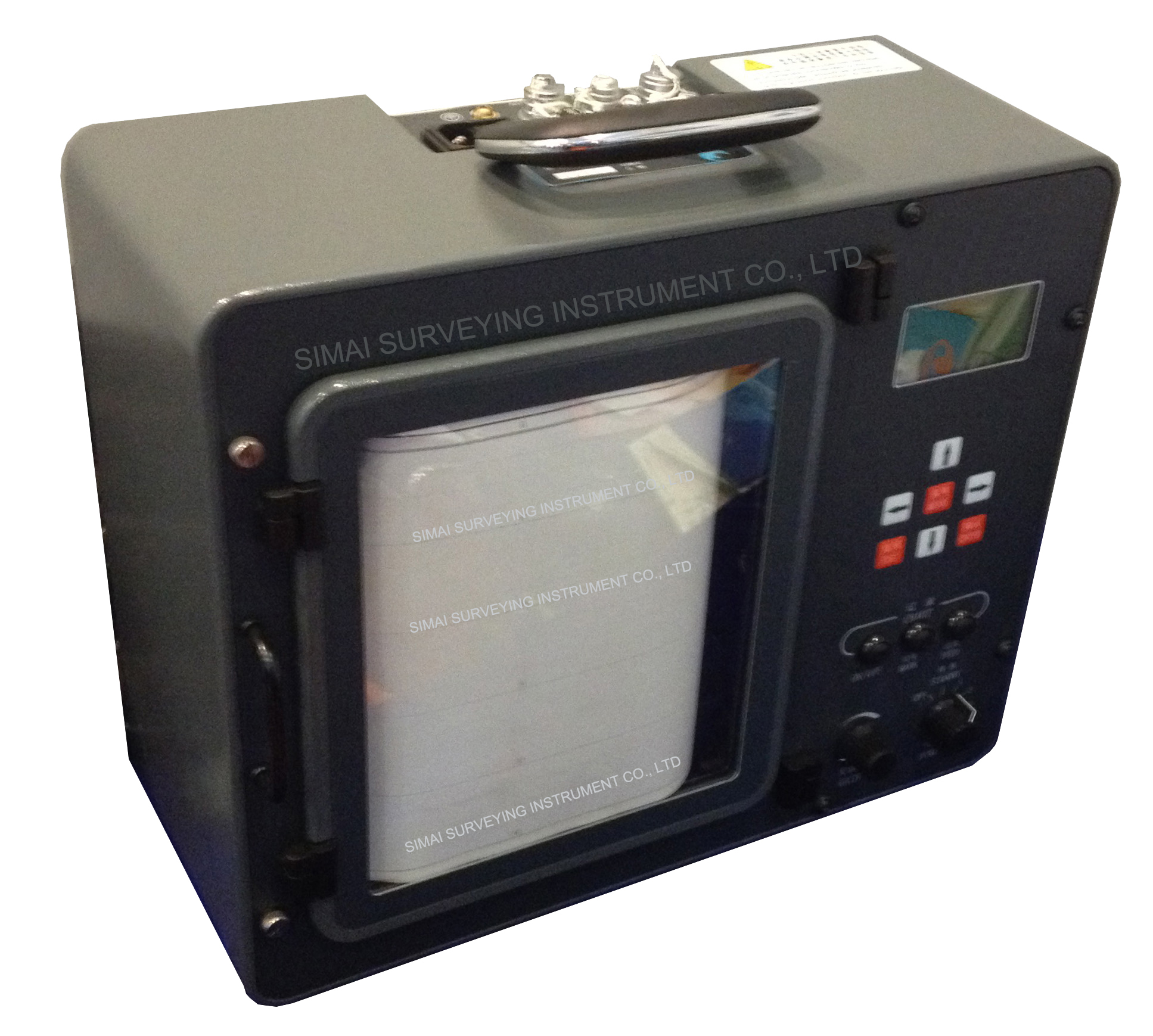

HY1600 is a portable, precision survey echosounder for surveying in inland water, rivers, coastal areas and in other rugged conditions. Digital processing enables the instrument to offer fully automatic bottom digitzing capabilities. The LCD displays a valid digital depth when a firm bottom has been locked. A RS-232/RS485 serial port interfaces to some external computer or GPS system and motion sensors and make the autosurveying possible.
Features

Adjustable pulse width / power / sensitivity/TVG
DSP Technical / Underwater automatic tracking skill
Standard RS232/485 serial data output pairs
Can be accessed by DGPS / PC / peripheral swell compensators, etc.
Self / keyboard setting parameters / off memory function

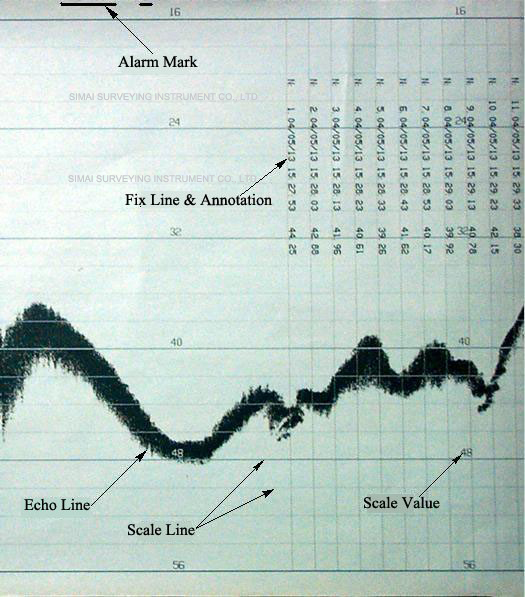

Thermal recording / LCD Display / manual and automatic commutation function
Automatic calibration / Note label / time / GPS coordinates / swell value

Specifications
Frequency 208KHz
Survey Range

0.3m-300m

Accuracy 0.1%

Resolution

1cm

Output power

100W

Power Req

10VDC-25VDC

Transducer

208KHz-8 deg

Recording

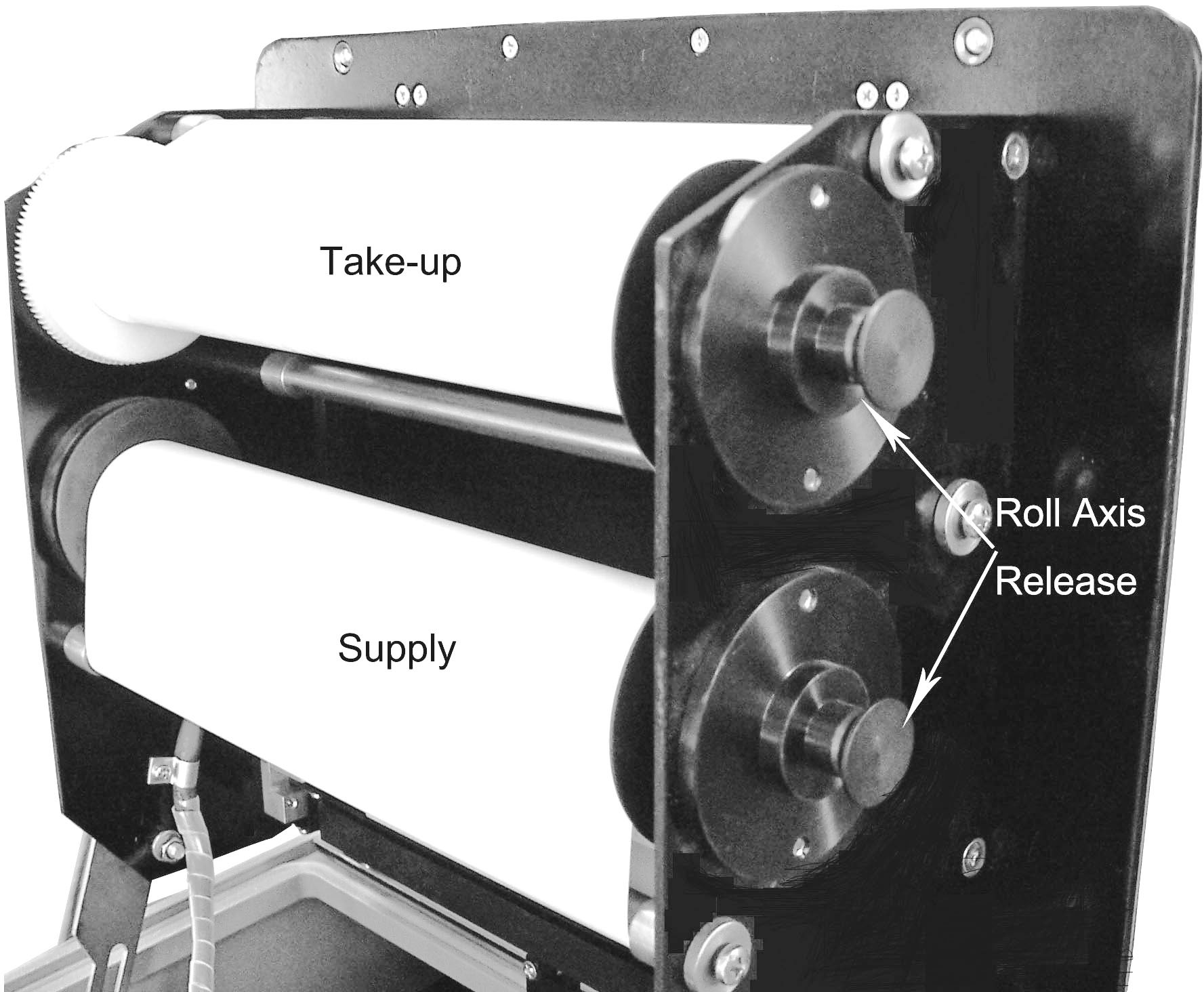

8.5''/216mm Thermal printer and LCD display

Chart speed

auto/1-20cm/min adjustable

Data Output

 2 ports via RS232/485

Phasing

Manual/Auto Scale Change

Weight

9.8kg

Miscellaneous

AGC/TVG, Auto-mark, Draft/velocity/Blanking adjustable

Host

Dimension

460×360×190mm

Weight

12kg

Transducer

Dimension

Φ80×26mm

Weight

1.5kg

Cable Length

10m(adjustable)

Measuring rod

Dimension

3×0.7m

Weight

5kg
