HY1601 PC Platform Digital Echosounder


Overview
HY1601 Echo Sounder System, based on the computer platform, with DSP and digital imaging technology, embedded industrial control system and data acquisition software, is a portable and integrated digital echo sounding system. Its main features are as follows: Standard computer for easy operation interface and data storage, advanced bottom digitizer, internal large storage of data to file with time reference, digitized depth, position heave and annotations and it can compatible with all survey software like HYPACK, EIVA and any other software package. It is a perfect choice for surveying in the river, lake and ocean.
Features
Based on the computer platform
TVG/AVG dynamic adjustment, reinforced anti- jamming ability
Low noise receiving ability and space filter, Time filter adjustment
High speed USB interface, huge storage capacity

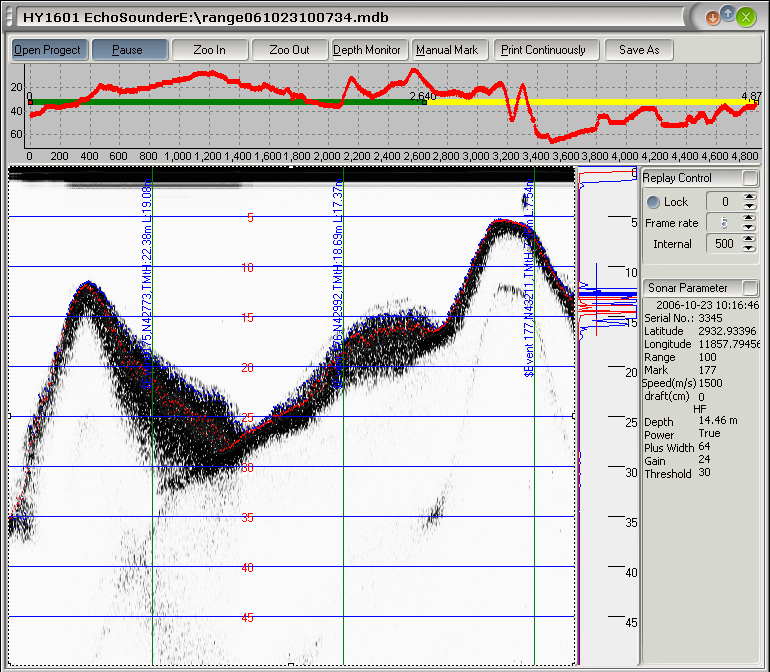

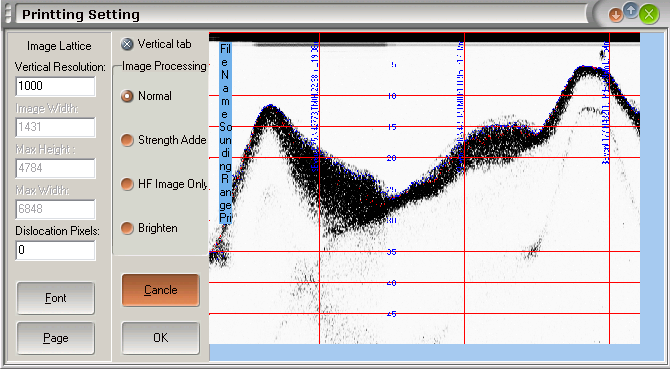

Echogram output for real time display, storage, playback and printing
Multi-ports communication for GPS, motion sensors and so on
Bundled data acquisition software like HYPACK, EIVA.
AC/DC Power supply

Specifications
Frequency 208KHz
Transducer Beam

208KHZ, <= 8 degrees

Depth range 0.3m-300m @ 208KHZ

Accuracy

0.01m ± 0.1% @ 208K

Output power

200W @ 208K

Input Power

22-31V DC or 180-260V AC

Consumption Power

100W

Recorder

Large capability hard disk storage

Composition

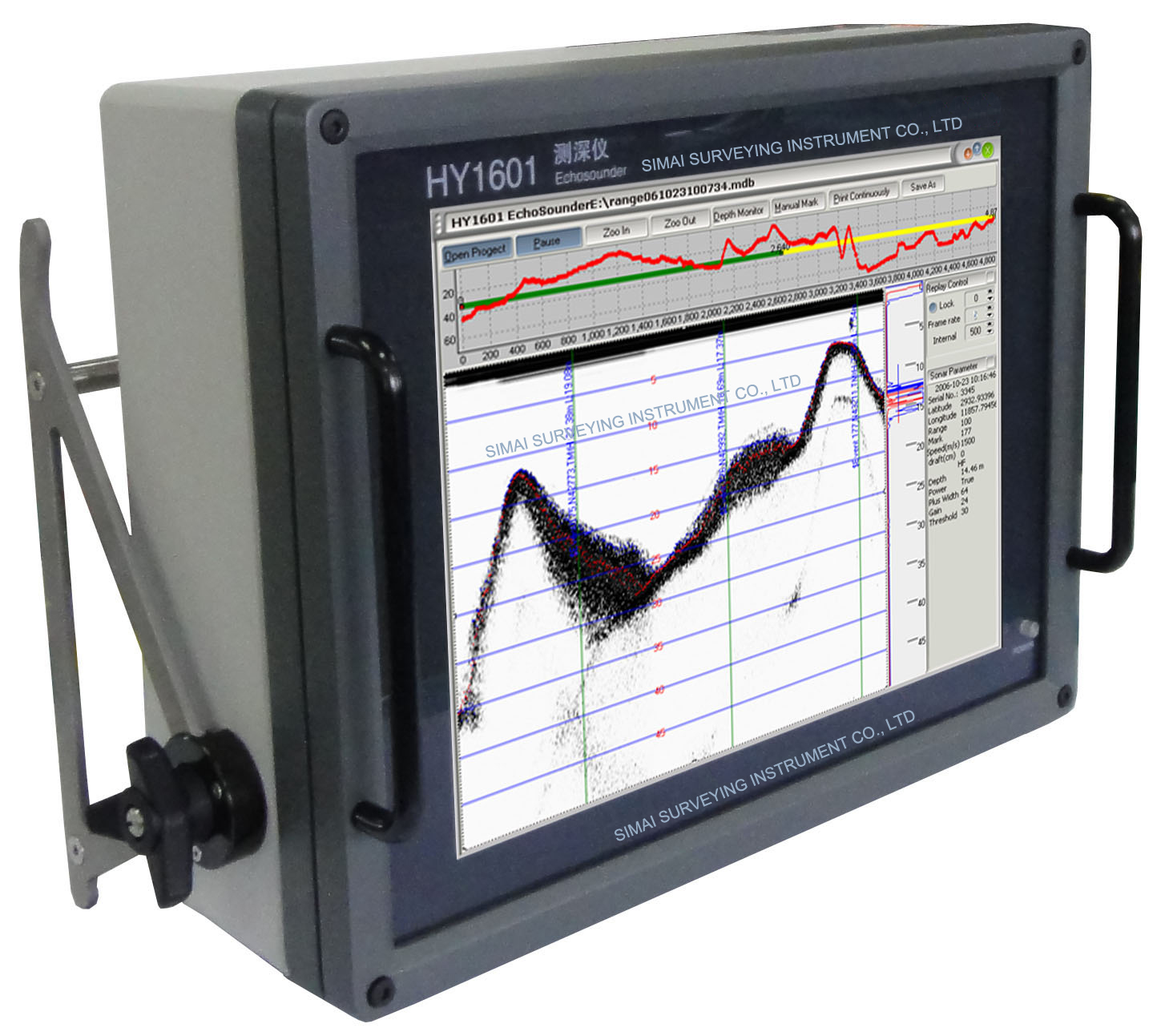

Main Unit



Dimensions

400 × 130 × 310mm

Weight

12kg

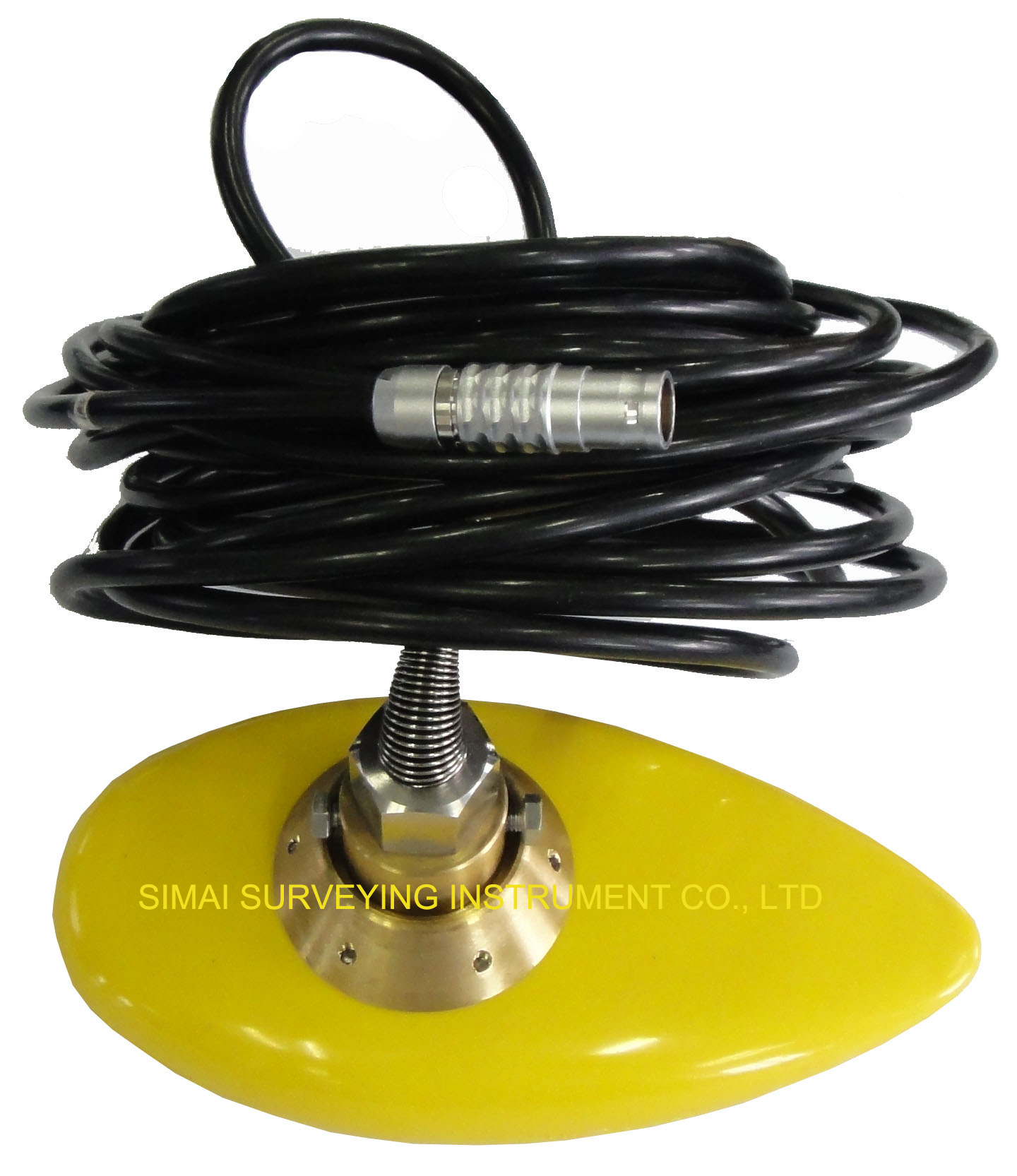

Transducer



Weight

1.5kg

Cable Length

 10m (adjustable)

Supporting Tube



Dimensions

3 × 0.7m

Weight

5kg
