HY1602 Dual Frequency PC Platform Echosounder


Overview

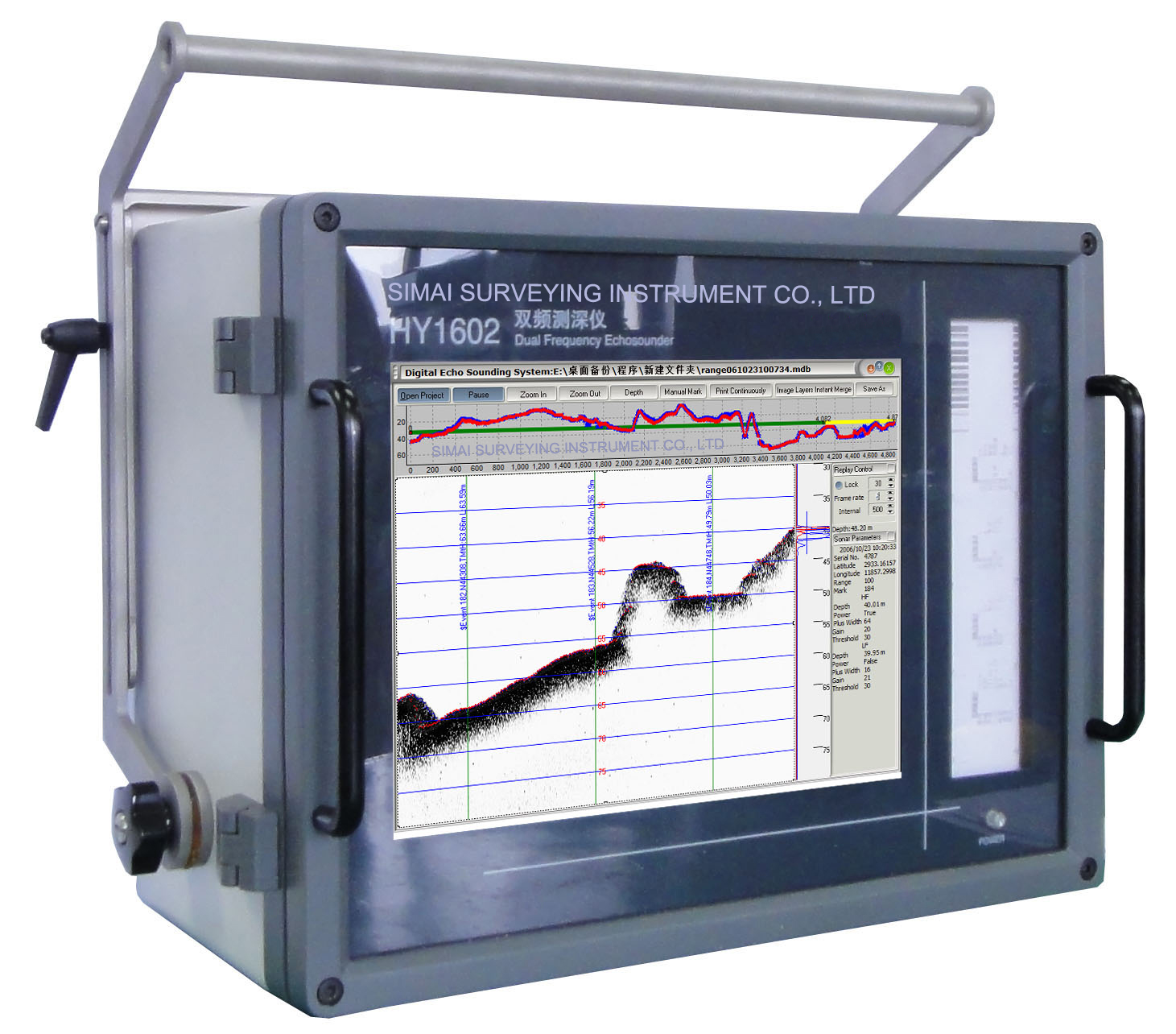

HY1602 Dual Frequency Echo Sounder System, with DSP and digital imaging technology, embedded industrial control system and data acquisition software, is an all-in-one PC based dual frequency echo sounder, which can output both echogram and chart paper result simultaneously. Its main features as follows: Standard computer for easy operation interface and data storage, advanced bottom digitizer, internal large storage of data to file with time reference, digitized depth, position heave and annotations. It is a perfect choice for surveying in the river, lake, ocean and so on.
Features
Dual Frequency,and Double channel
Output both echogram and chart paper result simultaneously
Based on the computer platform and have a slave display
TVG/AVG dynamic adjustment, reinforced anti- jamming ability
Low noise receiving ability and space filter, Time filter adjustment
High speed USB interface, huge storage capacity

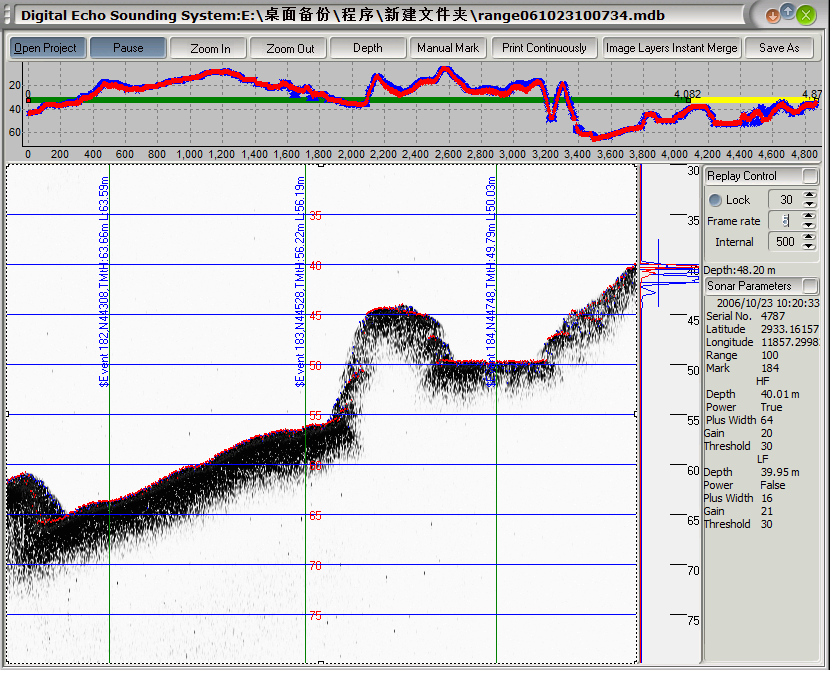

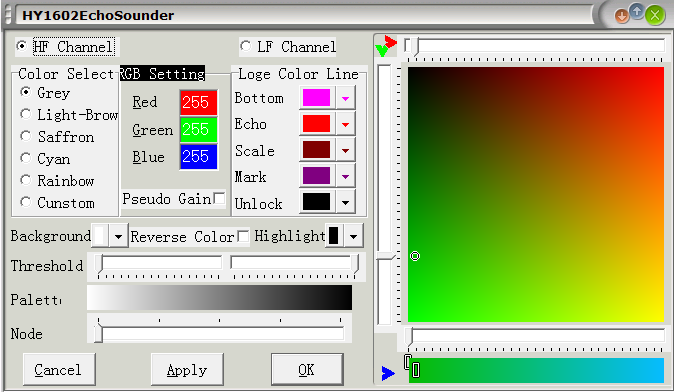

Echogram output for real time display, storage, playback and printing
Multi-ports communication for GPS, motion sensors and so on
Bundled data acquisition software like HYPACK, EIVA.
AC/DC Power supply

Specifications
Frequency
208KHZ/24KHZ
Transducer Beam
High Frequency
208KHZ, <= 8 degrees
Low Frequency
24KHZ, <= 20degrees
Depth range for High Frequency
 0.5m-300m @ 208KH
Depth range for Low Frequency
1m-2000m @ 24KHZ
Accuracy
0.01m ± 0.1% @ 208K
0.10m ± 0.1% @ 24K
Output power
200W @ 208KHZ
500W @ 24KHZ
Power Supply
22-31V DC or 180-260V AC
Consumption Power
100W
Recording
Echogram Large capability hard disk storage and Thermal chart paper recording
Composition

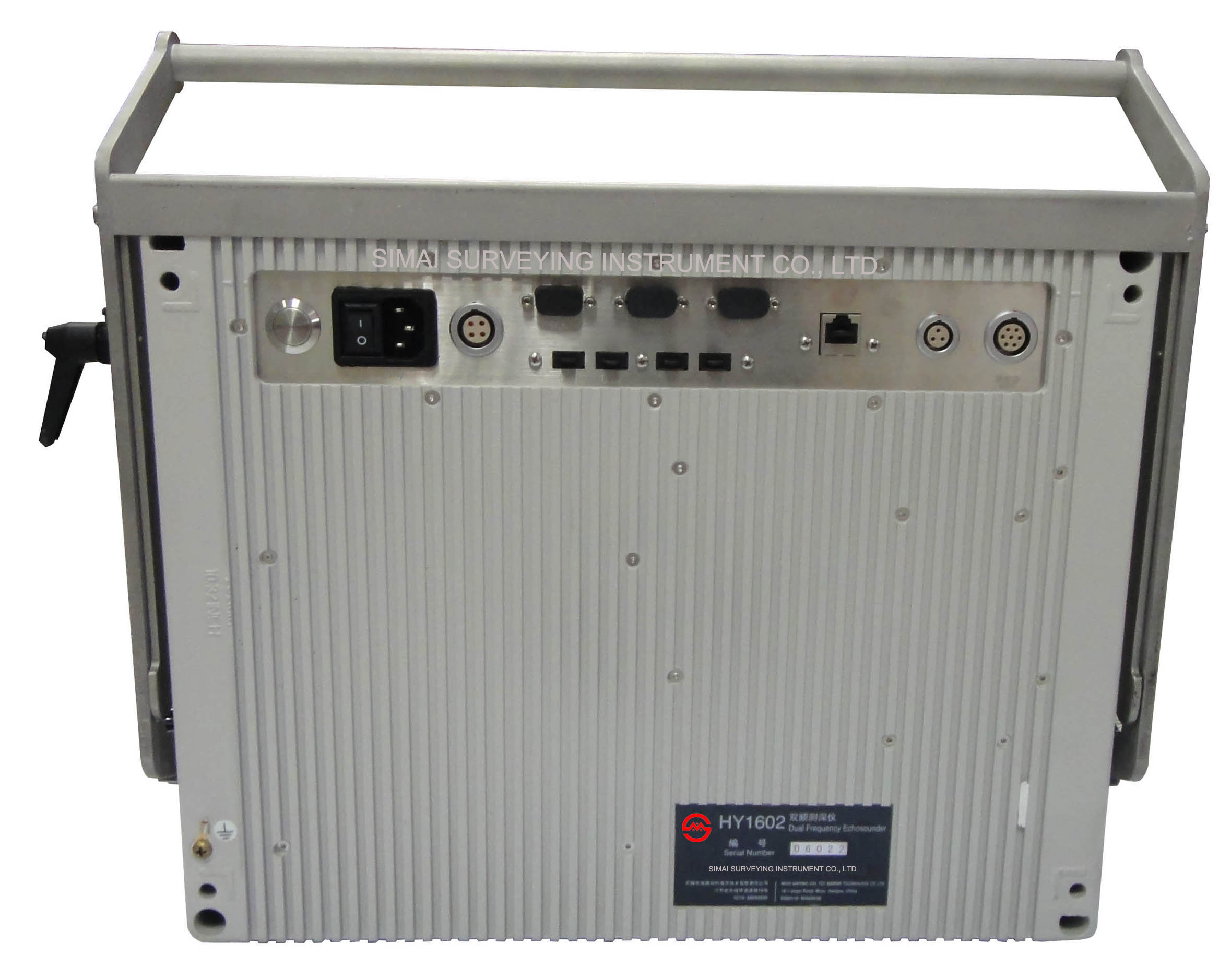

Main Unit



Dimensions

400 × 200 × 310mm

Weight

17.5kg

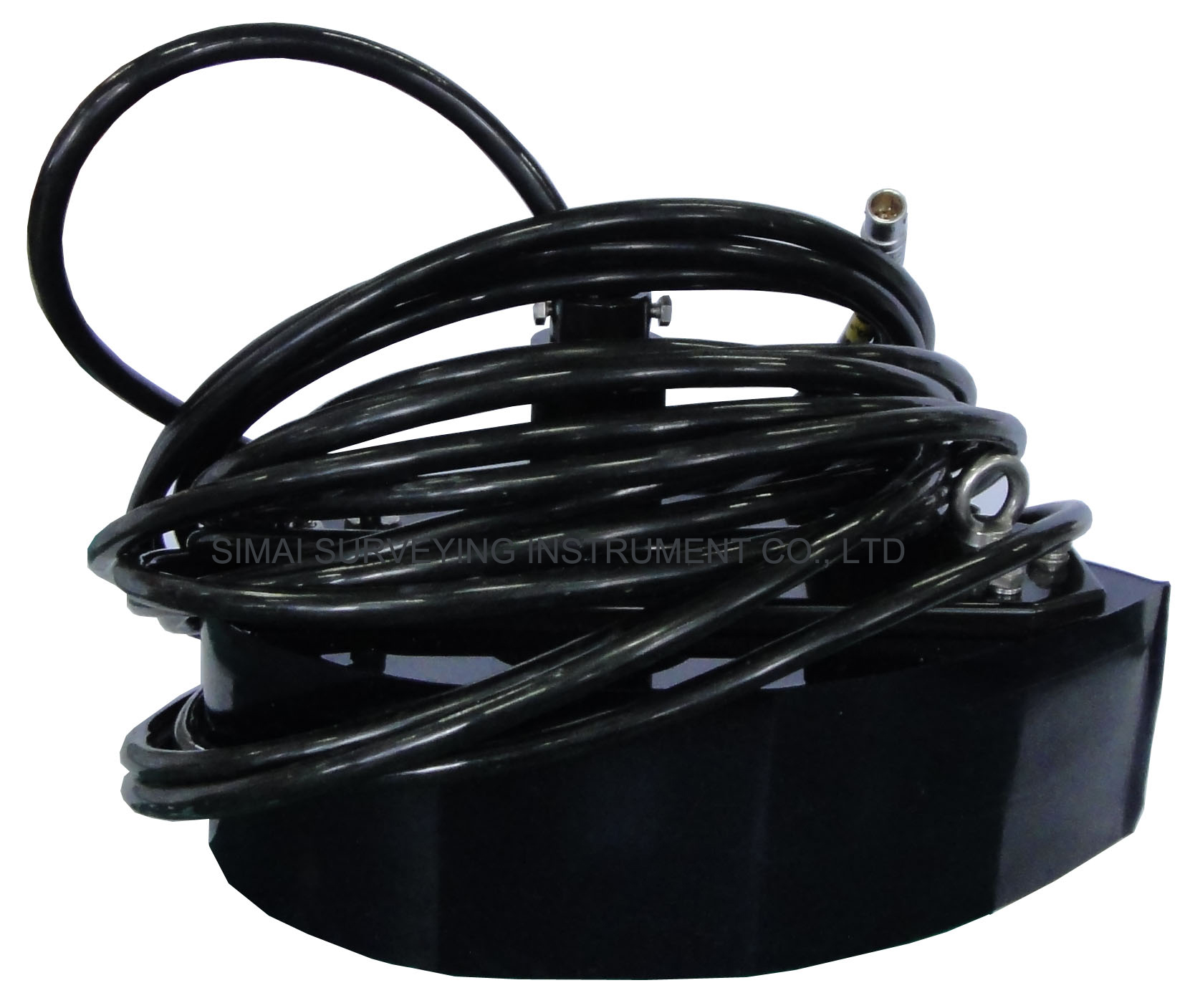

Transducer



Weight

20kg

Cable Length

 15m (adjustable)

Supporting Tube



Dimensions

3 × 1.5m

Weight

13kg
