HY1690 Deep Sea Survey Echosounder


Overview
HY1690 is a digital deep sea survey echosounder for ocean of 10,000 meters. It is composed of a mainframe and dual-frequency transducer. The mainframe, including an industrial computer system of good capability and two mutual backup transceivers, collects and displays the data. HY1690 operates and controls intelligently by the techniques of Digital Signal Process(DSP) to control backward and steering, TVG and AGC, dispose echo signal, search and follow bottom echo. Lots of techniques used in the machine, such as powerful transmitting circuit, low noise receive circuit, spatial filtering, dynamic threshold detection, TVG compensation and automatic gain control, make the measurement reliable,stable and accurate. The echosounder convinces realtime accurate measurement on different seabed even in condition of rough sea. Data measured by the transceiver is transmitted and saved into the industrial computer. Information of full scale can be saved and searched when checking results in the high-capacity disc.
Features
Survey sound signal sent with large power 10000 meters survey range
High-gain receive circuit
Anti-jamming Design/Spatial Filtering/Time filtering/Dynamic tracking gate
Controlled by industrial computer of high capacity and high speed

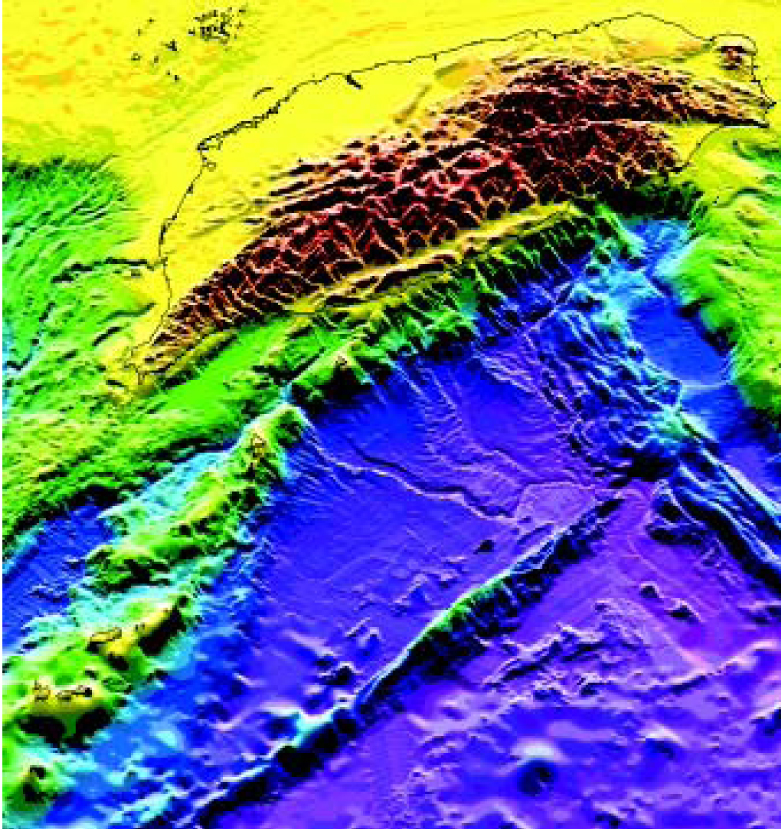

Full range of depth data
Specifications
Frequency
25KHz and 10.5KHz
Transducers
High frequency
25KHz, 20±1.5°
Low frequency
10.5KHz, 11±1° / 20±1.5°
Depth range
1-1200m@25KHz
10-10000m@10.5KHz
Output power
700W@25KHz
5000W@10.5KHz
Input power
220V (-15% ~+10%);AC 50Hz ±6%
Composition
Main Unit
Dimensions
650×1000×1350 mm
Weight
170kg
Transducer

High frequency
Dimensions
Φ 310×250 mm
Weight 14kg (without cable)
Installation hull-mounted with 60m cable
Low frequency
Dimensions 875×555×430 mm
Weight 220kg (without cable)
Installation hull-mounted with 60m cable
